Telemetry Visualizer¶

Overview¶

This is a simple dash-based tool that allows you to visualize the data extracted by our MKW Logger. It is dash-based, meaning it is a web page with a python backend. It requires you to upload the 2 files produced by the logger, the json and the csv, as well as a 3D model (.dae). Data uploaded stay local.

Description¶

Some features:

You can choose what data are visible when you hover a trace with the "select column" mulitple select dropdown.
The range slider allow you to select a time range into the race.
On the right side, you can choose to hide/unhide the traces of the players you want.
you can export the data parsed from the binary csv into an actual csv or an excel file so that you can read it/browse it manually. The file may be slightly heavy depending on the datapoints extracted and the duration of the race. A default (default logger and 3min race) would produce a ~60MB file.

Note

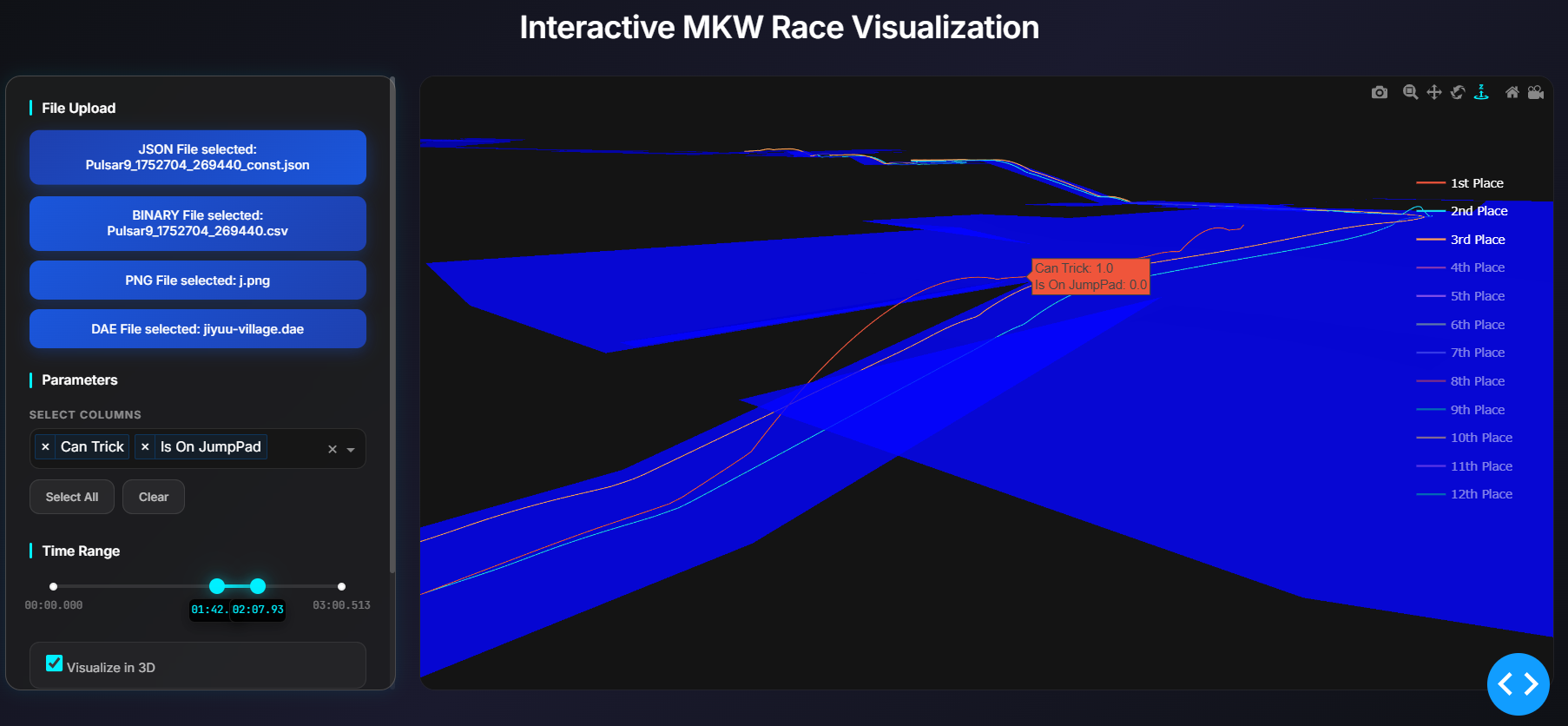

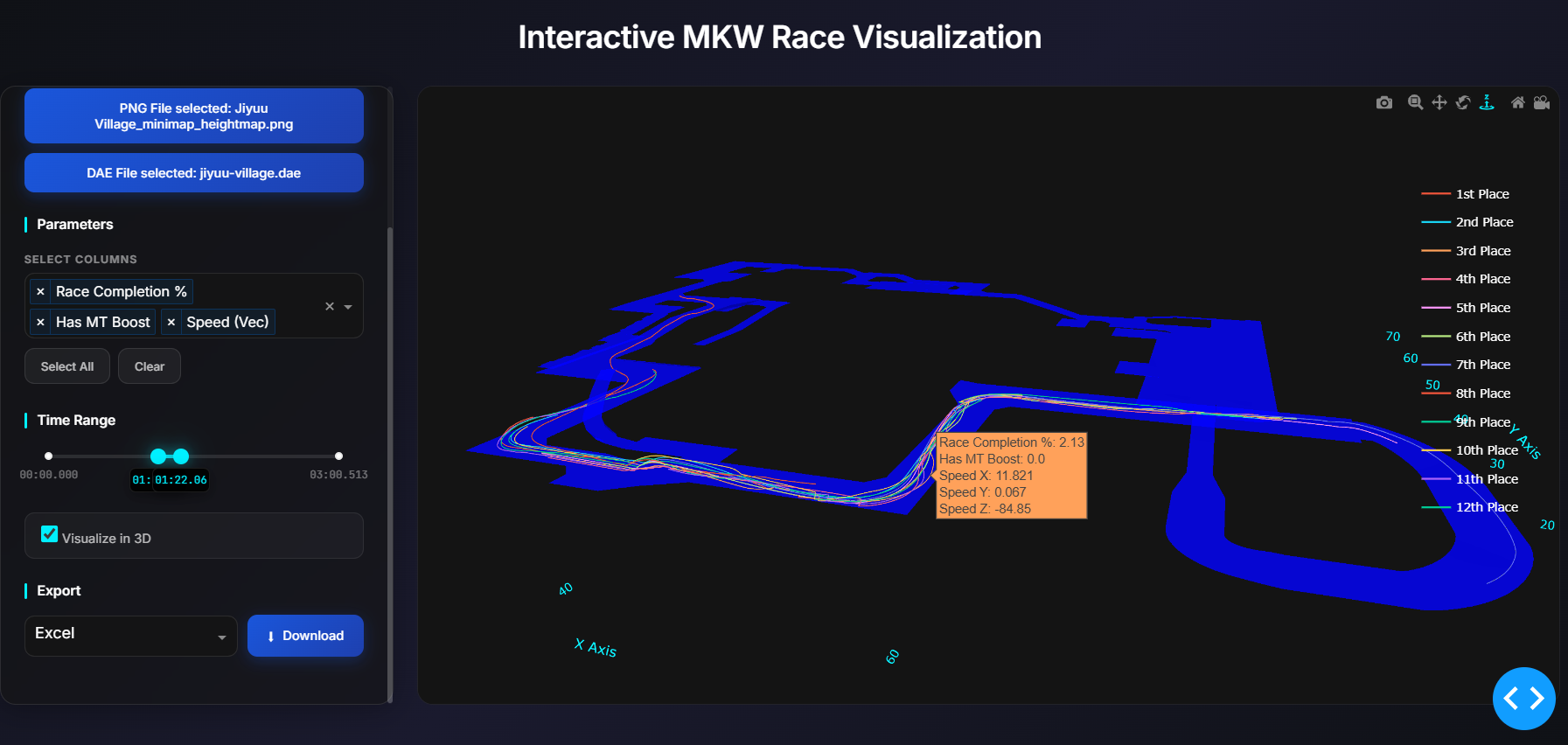

The data used for the screenshots uses the custom track Jiyuu Village and a manually driven race by the author with CPUs

Getting Started¶

Follow these instructions to set up the project on your local machine.

Prerequisites¶

Minimum required versions: 3.10+
pip (Python package installer)

Installation¶

Clone the repository

git clone https://github.com/baralll/kartographer.git
cd your-project-name

Create a Virtual Environment It is recommended to use a virtual environment to keep dependencies separate.
- macOS / Linux:
```
python3 -m venv .venv
source .venv/bin/activate
```
- Windows (PowerShell):
```
python -m venv .venv
.\.venv\Scripts\Activate.ps1
```
Install Dependencies Install the required packages from requirements.txt.
```
pip install -r requirements.txt
```

Usage¶

To run the application, execute:

python -m mkwdashboard.dash_main
